High-Force Electromechanical Actuator

Name: High-Force Electromechanical Actuator
Brand: Roller Screw Actuators
SKU: high-force-electromechanical-actuator
Availability: InStock
Rating: 4.9 (24 reviews)

Heavy-duty actuators engineered for high thrust, offering a clean electromechanical option where hydraulic replacement is feasible.

Target Buyer:Plant Managers and Heavy Industry Engineers looking to electrify equipment.

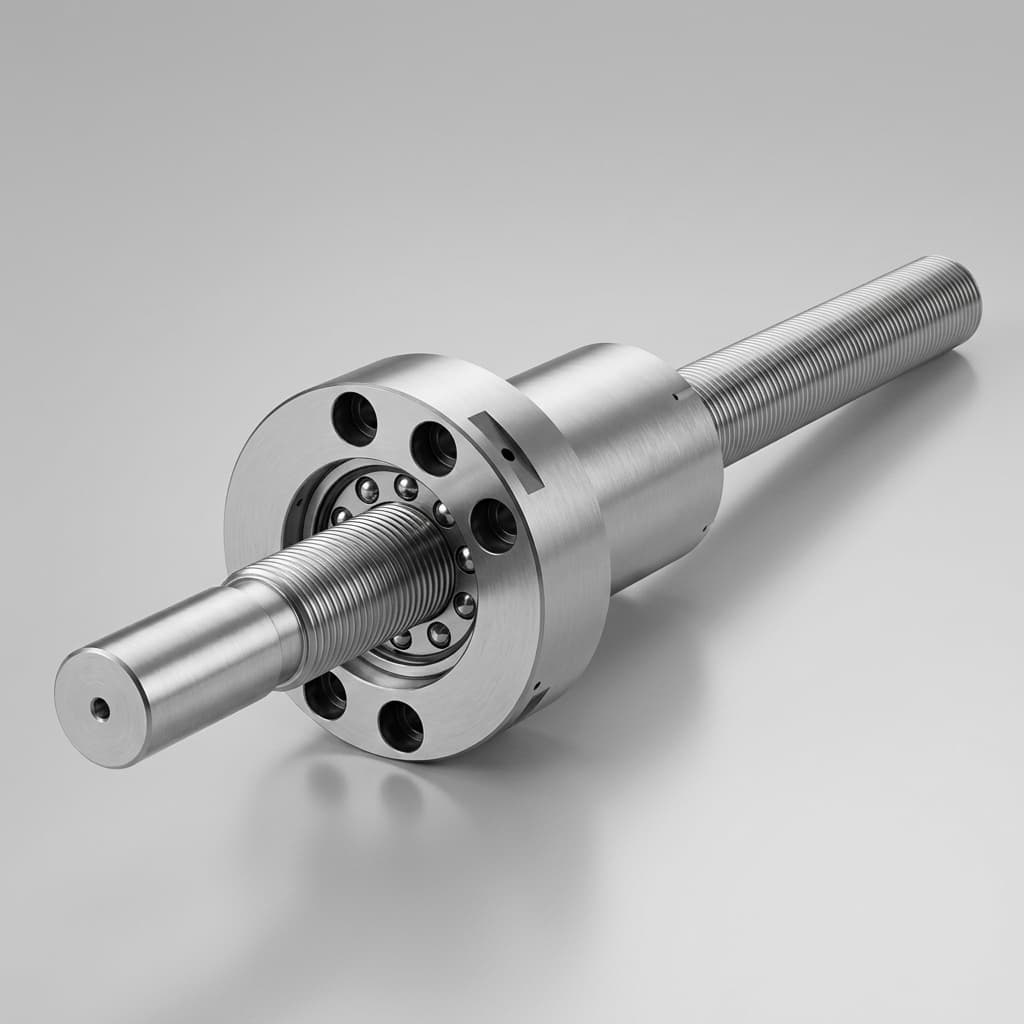

High-force electromechanical actuator assembly for hydraulic replacement

Best Fit

Hydraulic replacement projects where cleanliness, controllability, maintenance reduction, and data visibility are priorities.
Heavy clamping, lifting, valve, press, and test equipment axes with high thrust and shock-load requirements.
Industrial OEMs that need custom steel housings, oversize bearings, or integrated load monitoring.

Review Before Sizing

Continuous force, peak force, stall condition, shock factor, safety factor, and emergency stop load path.
Thermal duty, ambient temperature, ingress protection, corrosion exposure, and lubrication interval.
Fail-safe strategy, brake holding requirement, load-cell range, and manual release requirements.

Capability Highlights

High thrust capacity for heavy industrial axes
Lower standby energy use compared with many hydraulic power units
No hydraulic oil circuit, reducing leak-related maintenance and contamination risk

Typical Applications

Steel mills
Civil engineering
Large valve control

Engineering Focus

Oversized thrust bearing integration
Heavy-duty extruded or steel housings
Shock load mitigation

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Thrust Capacity	Project-sized from tens to hundreds of kN and above	Directly dictates the ability to replace existing hydraulic cylinders.
Shock Load Factor	Defined from process impact and safety factor	High-force axes often fail from short overload events rather than steady working thrust.
Stroke and Column Margin	Checked against screw diameter, support, and mounting	Long high-force strokes need buckling, bearing, and guide review before quotation.
Brake / Holding Strategy	Motor brake, rod lock, counterbalance, or mechanical support	Safety and heat behavior depend on how the load is held during dwell or power loss.

RFQ Checklist

Peak shock load vs. continuous working load
Environmental exposure (corrosive, outdoor)
Safety and fail-safe requirements
Current hydraulic bore, rod, pressure, flow, stroke, and mounting if replacing fluid power
Brake, load-cell, manual release, overload, and emergency-stop requirements

Risk Controls

Overload from shock loads: Engineered safety margins and heavy-duty load cell integration for force monitoring.
Side load or frame deflection damages the thrust train: Use external guidance, spherical bearings, alignment checks, and machine-frame review for heavy axes.
Hydraulic replacement is sized from nominal pressure only: Convert bore, rod, pressure, flow, actual measured loads, and duty cycle into an electric actuator load model.

Factory Validation Evidence

Heavy-duty housing machining, bearing journal inspection, thrust bearing preload, and weldment or coating checks.
Static load, running torque, axial play, brake hold, and sensor confirmation according to the agreed test plan.
Inspection reports covering key dimensions, material certificates, and serial-number traceability when specified.

Buying Notes

High-force electric actuators are not a drop-in answer for every hydraulic axis; speed, shock, envelope, and duty must be checked.
Share hydraulic pressure, bore, rod diameter, stroke, flow, mounting, and cycle data for a realistic comparison.
Plan prototype validation around heat rise, overload behavior, control tuning, and maintenance access.

Product Gallery

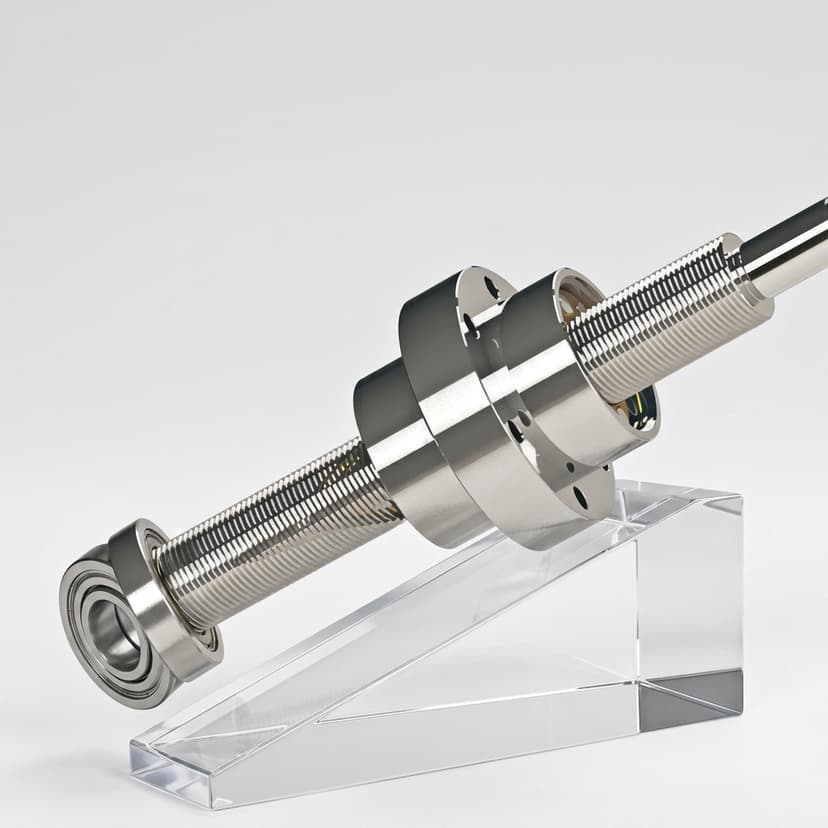

Heavy-duty roller screw actuator for industrial thrust applications

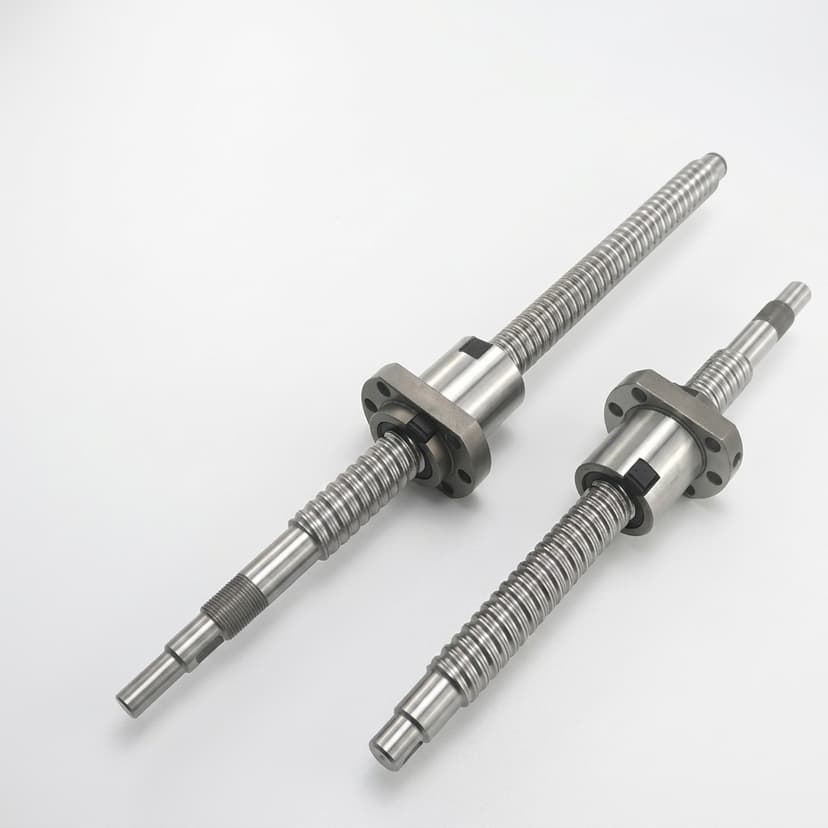

High-force actuator screw and housing package for OEM machinery

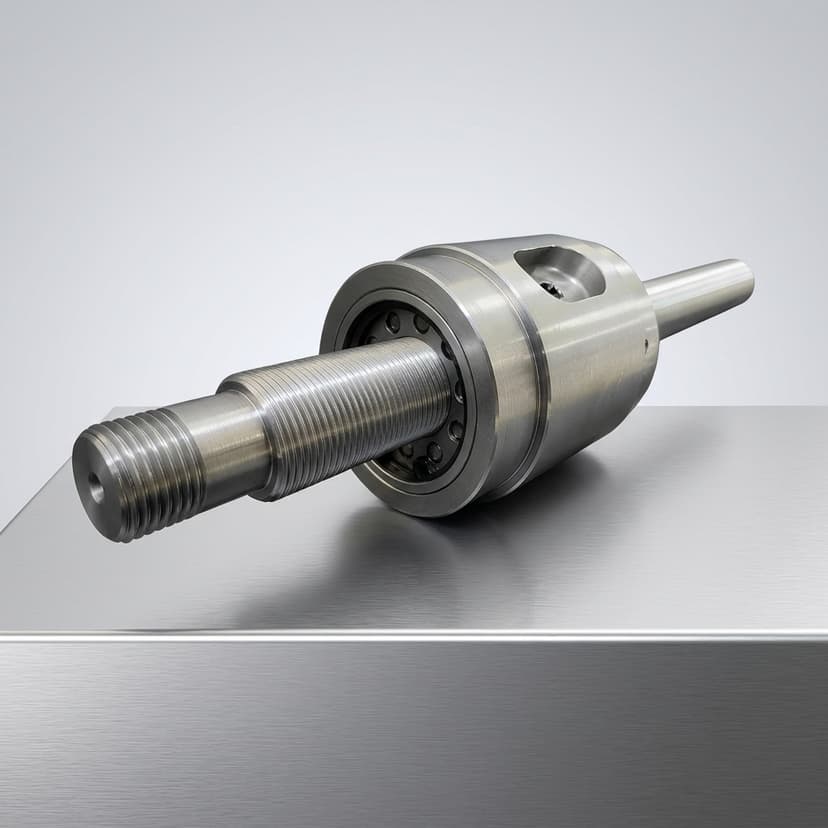

Electromechanical actuator assembly for press, lift, and valve axes

Buyer FAQ

What is the ROI when replacing hydraulics?

ROI depends on cycle rate, duty profile, hydraulic maintenance cost, downtime risk, and energy price. We review the existing cylinder, HPU, and control requirements before estimating payback.

Are high-force electromechanical actuators always smaller than hydraulics?

Not always. Electric systems can remove hoses and HPUs, but the actuator body, motor, gearbox, brake, and load path still need enough space for force and thermal margin.

What validation should be planned for a heavy-duty actuator?

Plan static load, running torque, axial play, brake hold, sensor checks, temperature rise, and project-specific cycle testing before production release.
