Hydraulic Replacement

Review heavy machinery axes for hydraulic cylinder replacement with high-force electromechanical actuators.

Target Buyer:Plant engineers aiming to modernize facilities and reduce maintenance, leaks, and idle energy use.

High-force roller screw actuator for replacing hydraulic cylinders

Best Fit

Machines where oil leaks, noise, HPU maintenance, heat, or poor motion data are limiting uptime or process quality.
Press, clamp, lift, valve, and test axes where an electric actuator can meet force, speed, duty, and shock limits.
Modernization projects that need cleaner operation and controllable force-position profiles.

Review Before Sizing

Existing cylinder bore, rod size, pressure, flow, stroke, mounting, and actual peak-load events.
Cycle profile, dwell time, holding force, shock load, side load, ambient conditions, and safety behavior.
Whether the replacement must fit the exact pin-to-pin envelope or can use a redesigned actuator package.

Solution Highlights

Eliminate hydraulic fluid leaks and contamination
Reduce standby energy use where hydraulic power units run continuously
Improve precision, repeatability, and control

Common Use Cases

Steel processing
Lumber mills
Marine equipment

Implementation Focus

Matching existing hydraulic envelope
Simulating hydraulic force profiles
Shock absorption

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Energy Efficiency	Project-dependent efficiency gain	Hydraulic power units often consume energy at idle, while electric axes can reduce idle losses when braking and holding are designed correctly.
Force Conversion	Bore, rod, pressure, and measured process load	Prevents oversizing the electric actuator from hydraulic nameplate pressure alone.
Retrofit Envelope	Pin-to-pin, body diameter, motor space, and cable route	Determines whether the replacement can fit directly or needs a machine redesign.
Holding Strategy	Brake, rod lock, counterbalance, or mechanical support	Electric systems need explicit safety behavior for vertical or sustained-force axes.

RFQ Preparation Checklist

Current hydraulic cylinder bore and rod size
Operating pressure and flow rate
Mounting pin-to-pin dimensions
Actual working force, shock events, cycle profile, and dwell time
Safety behavior, brake or lock requirement, and acceptable retrofit envelope

Risk and Mitigation

Spike loads breaking mechanical components: Sizing based on peak shock loads rather than just continuous working pressure.
Thermal overload during long force holds: Use brake holding, mechanical linkages, or revised duty cycle when the motor would otherwise hold high current.
Hydraulic cylinder was oversized and hides the real load: Measure or estimate actual working load, then size the roller screw actuator from real force and cycle data.

Factory Validation Evidence

Load, brake, running torque, axial play, sensor, and thermal checks tied to the replacement duty profile.
Mounting and rod-end dimensional inspection against the old cylinder or buyer drawing.
Optional prototype acceptance testing before line retrofit or multi-axis rollout.

Buyer Decision Notes

Electric replacement is strongest when controllability, cleanliness, maintenance, and data are valued alongside thrust.
It may not be the best fit when very high speed, severe shock, or tiny envelope constraints cannot be solved mechanically.
Send photos, nameplate data, hydraulic circuit notes, and failure history to speed the first engineering review.

Recommended Products

Electromechanical cylinder assembly for clean hydraulic replacement projects

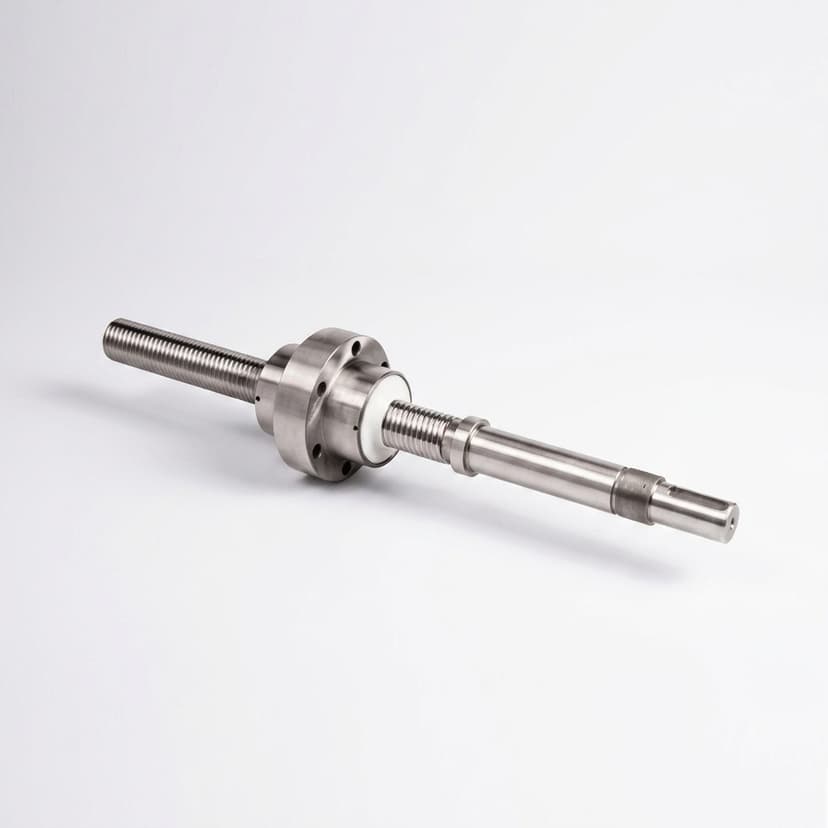

Heavy-duty roller screw actuator package for retrofit applications

Buyer FAQ

Can an electric actuator match the force of my hydraulic cylinder?

Often yes, but the decision depends on bore, pressure, stroke, shock load, duty cycle, speed, mounting envelope, and safety requirements. We size against peak load, not only nominal working pressure.

When is hydraulic replacement not a good fit?

It may be a poor fit when the axis needs extreme shock absorption, very high speed in a tiny envelope, or fluid-power safety behavior that cannot be replicated mechanically.

What should I send for a hydraulic replacement review?

Send cylinder bore, rod diameter, pressure, flow, stroke, mounting drawings, photos, cycle profile, failure history, environment, safety requirements, and delivery target.
