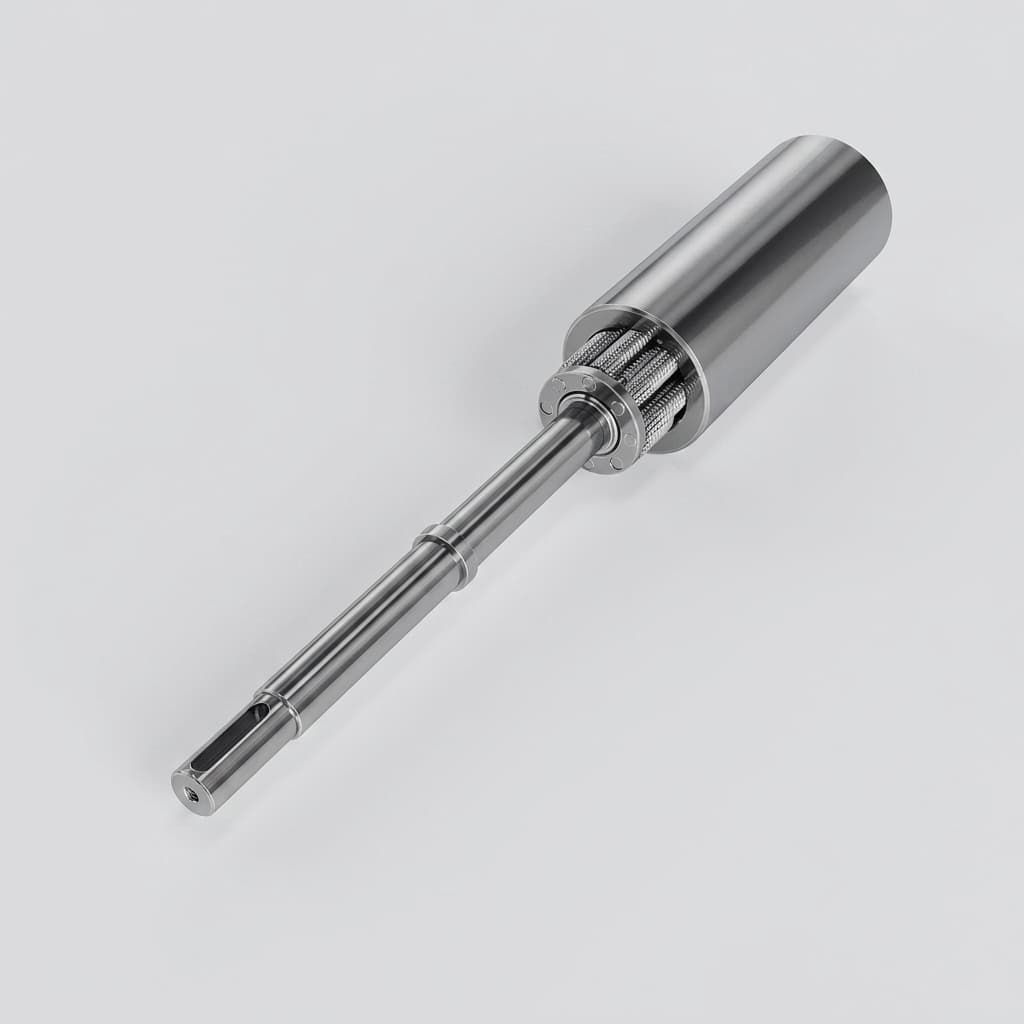

Robotics Actuators

Compact, high force-density linear actuators designed around the space and weight constraints of modern robotics.

Target Buyer:Robotics R&D Engineers seeking to maximize payload capacity.

Best Fit

Humanoid, collaborative robot, gripper, exoskeleton, and mobile-machine axes that need compact high-force motion.
R&D programs that need fast iteration from envelope concept to prototype and pilot batch.
Actuator modules where screw, motor, brake, sensor, cable, and housing packaging must be solved together.

Review Before Sizing

Joint envelope, moving mass, peak load, impact load, duty cycle, battery voltage, and controller current limits.
Backdrive behavior, holding brake, thermal path, connector position, cable fatigue, and ingress protection.
Noise, efficiency, lubrication retention, service life, and pilot-batch manufacturability.

Solution Highlights

Inverted architectures for minimal retracted length
Lightweight materials to reduce robot mass
Backdrive, brake, and holding behavior reviewed for the target safety concept

Common Use Cases

Humanoid robot joints
Exoskeletons
Mobile manipulation

Implementation Focus

Weight reduction
Motor, sensor, cable routing, and package integration
Low friction seals

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Power-to-Weight Ratio	Custom engineered per application	Directly impacts the robot's battery life and agility.
Retracted Envelope	Joint-specific length, diameter, and connector space	Robotics packaging often fails when actuator, cable, sensor, and brake are not reviewed together.
Backdrive / Holding Behavior	Defined by screw lead, gear ratio, brake, and control limits	Affects collaborative safety, power-off behavior, and joint controllability.
Prototype Thermal Rise	Measured under representative motion cycles	Compact robot modules can pass force checks but fail endurance when heat has no path out.

RFQ Preparation Checklist

Strict weight and envelope limits
Required dynamic response (acceleration)
Battery voltage constraints
Joint shock load, backdrive behavior, brake strategy, and controller current limit
Cable routing, connector orientation, noise target, and pilot-batch quantity

Risk and Mitigation

Cable management in tight joints: Hollow shaft designs allowing cables to route through the actuator center.
Prototype geometry cannot scale to pilot batch: Review manufacturability, CTQ dimensions, assembly torque, lubrication, and inspection access before quantity ramp.
Shock load from falls or impacts exceeds the motion load: Size against impact events and add mechanical stops, control limits, or sacrificial structures where needed.

Factory Validation Evidence

Prototype envelope review against buyer STEP files and first-article dimensional inspection.
No-load current, friction torque, backlash, axial play, heat rise, and repeated cycle checks.
Pilot-batch inspection plan for CTQ dimensions, assembly torque, lubrication, and serial traceability.

Buyer Decision Notes

Robotics programs benefit from early NDA-backed DFM because small package changes can unlock large performance gains.
Share target quantity stages and revision timing; prototype geometry may not be production-ready.
Decide early whether the actuator should be supplied as a bare mechanical module or an integrated mechatronic unit.

Recommended Products

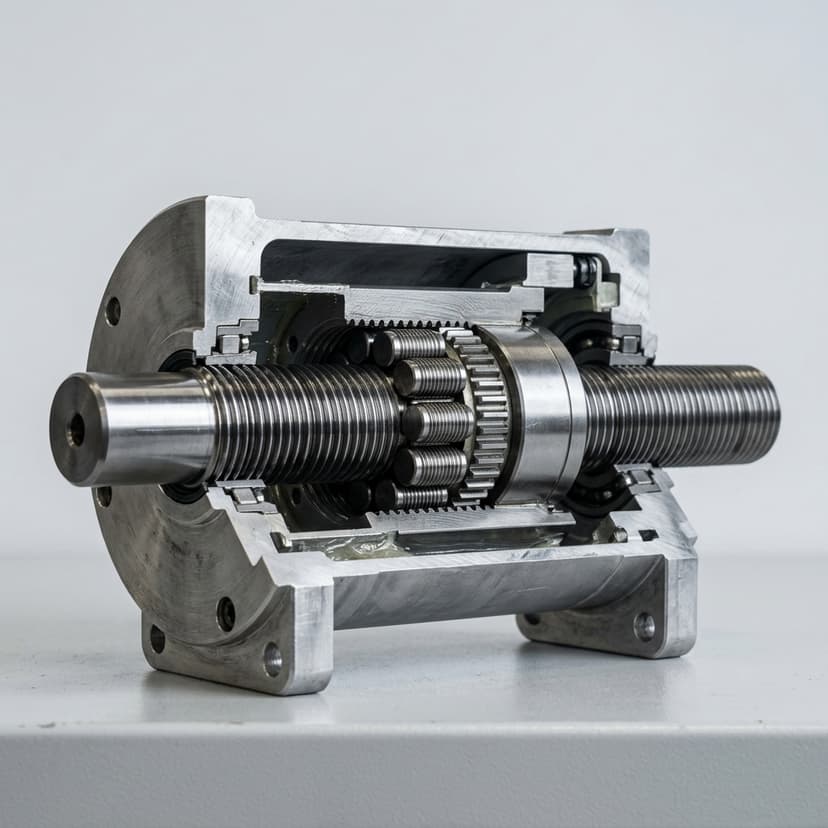

Robotics Planetary Roller Screw Assembly

Buyer FAQ

Are these actuators suitable for humanoid legs?

They can be a strong fit for humanoid knee, ankle, and hip concepts when the envelope, shock load, thermal model, backdrive behavior, and controller requirements are reviewed together.

Can you support NDA-backed robotics development?

Yes. Robotics programs often need early NDA-backed DFM because actuator envelope, motor packaging, and pilot-batch manufacturability change together.

What validation matters most for robotics actuators?

No-load current, friction torque, backlash, axial play, heat rise, repeated cycle checks, cable fatigue, and serial traceability are usually more useful than force rating alone.
